Corrugated boxes are not all the same. Two boxes that look identical on the outside can have dramatically different strength, weight capacity, and cost based on their grade, flute type, and paper specification. For buyers sourcing corrugated boxes from India in bulk quantities, understanding these differences upfront prevents costly mistakes: boxes that fail in transit, a shipment specification that doesn't match the application, or paying for strength you don't need.
This guide covers the key variables - grades, sizes, flute types, and standard dimensions - in practical terms for USA and UK importers.
Corrugated Board Grades: What the Numbers Mean
When an Indian manufacturer quotes a corrugated box, they will typically reference a board grade - a combination of paper weights and grades that defines the board's strength. The most common format you'll see is something like 150/120/150 or 180/150/180, where each number represents the weight in grams per square metre (GSM) of each layer:
- Outer liner (first number): The outside face of the box. Heavier liner = better puncture and burst resistance.
- Corrugated medium (middle number): The fluted wavy layer inside. Heavier medium = better stacking strength.
- Inner liner (last number): The inside face of the box.
Common grades and their typical applications:
| Board Grade | Total GSM | Best For |
|---|---|---|
| 120/90/120 | 330 GSM | Light retail goods, e-commerce, < 5 kg |
| 150/120/150 | 420 GSM | General purpose, 5–15 kg |
| 180/150/180 | 510 GSM | Heavier goods, export shipments, 10–25 kg |
| 200/180/200 | 580 GSM | Industrial, agricultural produce, 20–35 kg |
| Double-wall 150/120/150/120/150 | 690 GSM | Heavy-duty export, 25–50 kg |
For export shipments to the USA and UK, the most common grades are 150/120/150 (light to medium goods) and 180/150/180 (standard export grade). If your goods are dense, fragile, or will be stacked in a sea freight container, specify a heavier grade.
Flute Types and When to Use Each

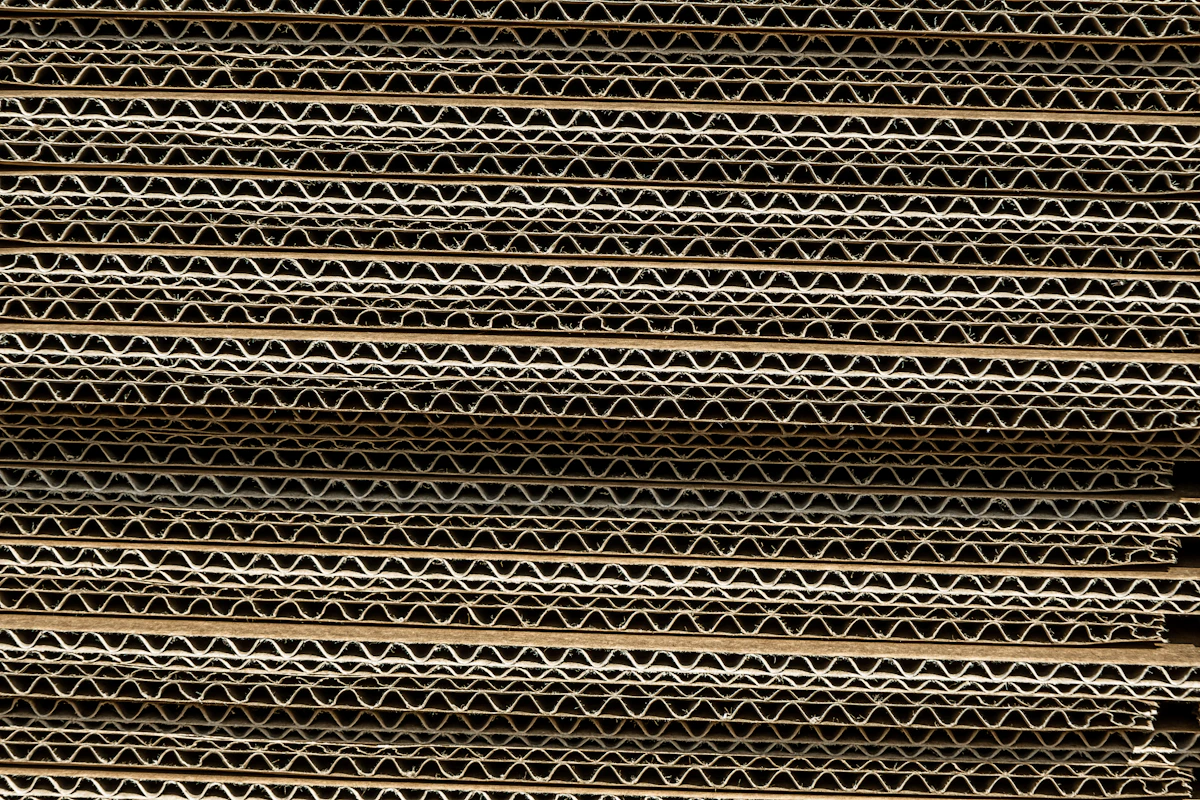

The flute - the wave-shaped corrugated layer - determines how the box handles compression, cushioning, and stacking load. The main flute profiles used in export packaging:
C-flute (4mm thick): The most widely used flute type globally. Balances cushioning, stacking strength, and printability. If you are ordering general-purpose corrugated boxes from India, you are most likely getting C-flute unless specified otherwise.
B-flute vs C-flute: C-flute provides slightly better top-to-bottom stacking strength; B-flute offers better flat crush resistance and is more material-efficient. For most export applications, C-flute is the correct default. For a comprehensive comparison of B, C, E, and BC double-wall flute profiles including cushioning performance, print suitability, and when to use each, see our B, C, and E flute comparison guide.
E-flute (1.5mm): Very thin. Used primarily for retail cartons and packaging inserts, not for shipping boxes. If you receive a quote for E-flute corrugated, confirm it is for the intended application.
Double-wall BC-flute (5-ply): A double-wall construction with B-flute inner and C-flute outer layer. Significantly stronger than single-wall. The standard for heavy-duty export applications. See our full guide on heavy-duty corrugated boxes for export for more detail on double-wall and triple-wall options.
ECT vs Burst Strength: Which Specification Matters for You
You will encounter two strength ratings when reviewing corrugated box specifications:
Burst Strength (Mullen Test) measures how much hydraulic pressure the board can withstand before rupturing, expressed in PSI or kPa. A higher burst strength means better resistance to puncture and rough handling.
Edge Crush Test (ECT) measures how much vertical load the corrugated board can carry before the flutes collapse, expressed in lb/in. This is the stacking strength - how much weight the box can bear when other boxes are stacked on top of it.
Which to specify: For export shipments going by sea freight, ECT is the more important rating. Boxes in a shipping container are stacked and compressed vertically for weeks. A box with high burst strength but low ECT will be crushed before it reaches port. Common ECT requirements for export:
- Light goods (< 10 kg): 23 ECT minimum
- Standard export (10–25 kg): 32 ECT minimum
- Heavy goods (25–50 kg): 44 ECT or higher
Request ECT test certificates from your Indian supplier before confirming an order. Reputable manufacturers test every board batch and can provide documentation.
Standard Corrugated Box Sizes Used in Export
There is no single universal standard for corrugated box sizes - dimensions are determined by what fits the product being packed. However, some sizes are common in export trade because they palletise efficiently for sea freight containers. Standard export pallet dimensions are 1200mm × 1000mm (international) or 1200mm × 800mm (Euro pallet).
Common corrugated box sizes used for export from India (internal dimensions, length × width × height in mm):
| Box Size | Common Application |
|---|---|
| 300 × 200 × 150 mm | Small retail goods, samples |
| 400 × 300 × 300 mm | Mid-size retail and e-commerce |
| 500 × 400 × 400 mm | General export, home goods |
| 600 × 400 × 400 mm | Apparel, textiles, light industrial |
| 600 × 500 × 500 mm | Agricultural goods, bulk retail |
| 800 × 600 × 600 mm | Large industrial goods, heavy-duty |
For pallet efficiency, choose box dimensions that divide evenly into your pallet footprint with minimal gaps. A 600 × 400 mm base fits neatly onto both international and Euro pallet sizes with no wasted space.
Custom sizes: Indian manufacturers produce corrugated boxes in any custom dimension. There is no meaningful price premium for custom sizes in orders above approximately 2,000 units, as the box dimensions are determined by the die-cut and scoring tooling, which is inexpensive to produce. Do not limit yourself to the sizes above if a different dimension suits your product better.
Regular Slotted Carton (RSC) vs Other Box Styles
The vast majority of corrugated shipping boxes worldwide are RSC (Regular Slotted Cartons) - the familiar box where all four flaps on top and bottom meet at the centre when closed. RSC is the most cost-efficient style to manufacture and palletise.
HSC (Half Slotted Container): An RSC with no top flaps, used with a separate lid. Common for heavier goods packed from above, or where frequent access to the box contents is required.
FOL (Full Overlap): The top and bottom outer flaps extend the full width of the box and fully overlap when closed, rather than just meeting at the centre. This adds an extra layer of corrugated at the top and bottom, improving crush resistance by 20–30%. A sensible upgrade for heavy goods without significantly increasing cost.
Die-cut custom shapes: Trays, display boxes, partitioned inserts, and irregular shapes. These require custom cutting dies (typically $100–$300 USD per design), but the per-unit cost converges with RSC at moderate volumes.
For most export applications, RSC with C-flute or BC-flute construction is the practical starting point.
How Printing Affects Box Grade Choice
If you need branded corrugated boxes with multi-colour printing, the flute and liner choice affects print quality:
- B-flute provides a flatter surface than C-flute, producing sharper flexographic print results
- Kraft liner (brown) prints with better colour fidelity than test liner at the same GSM
- White-top liner (white coating on kraft base) provides the cleanest print surface for high-quality branded boxes
For unprinted or one-colour printed export boxes, liner colour and surface quality don't matter. For retail-ready branded corrugated packaging, specify white-top liner and B-flute if print quality is a priority.
See our guide on custom printed corrugated boxes with logo for full detail on print specifications.
What to Tell Your Indian Supplier When Requesting a Quote
To get an accurate, like-for-like quote from an Indian corrugated box manufacturer, provide:
- Internal dimensions (L × W × H in mm or inches) - always internal, not external
- Box style - RSC, HSC, FOL, or custom
- Wall construction - single-wall, double-wall, or triple-wall
- Flute type - B, C, BC, or other
- Board grade - liner and medium GSM (e.g., 150/120/150) OR ECT rating requirement
- Maximum load - weight in kg of goods going into each box
- Printing - number of colours, any regulatory text, brand logo
- Quantity - units per order
- Destination port and Incoterms - FOB Mumbai/Mundra, CIF UK/USA, etc.
Providing this upfront eliminates multiple rounds of back-and-forth and ensures every manufacturer is quoting the same specification.
Sourcing Corrugated Boxes from India
India produces corrugated boxes to international quality standards, with manufacturing concentrated in Gujarat (Ahmedabad, Surat), Maharashtra (Mumbai, Pune), and the Delhi NCR region. Factory-direct supply from Indian manufacturers typically offers 30–50% cost savings versus buying domestically in the USA or UK, even after freight costs.
For a complete walkthrough of the import process - documentation, lead times, quality checks, and supplier evaluation - see our guide on how to import corrugated boxes from India.
Whizzpack manufactures corrugated boxes in India in all grades and sizes for export to the USA, UK, and Europe. For detailed specification guides by box type, see our pages on RSC corrugated boxes, double wall corrugated boxes, and custom printed corrugated boxes. Contact us at contact@whizzpack.in or visit our corrugated boxes page to request a quote.
